Limiting access the bot section by the number of requests

Published July 6, 2022

We came across a task where we needed to limit user access to the bot section within a given period. To be more specific, the task was to limit the number of times a user could chat with an operator to 3 times per month.

This kind of functionality is often of interest to organisations offering batch consulting services.

We will now explain the details of the bot implementation.

1. After paying for the services, you need to set a label for the user. We suggest calling it Reset.

2. After setting the Tag, let’s set up Assign a variable component, where we assign {{qChat}} value to qChat variable.

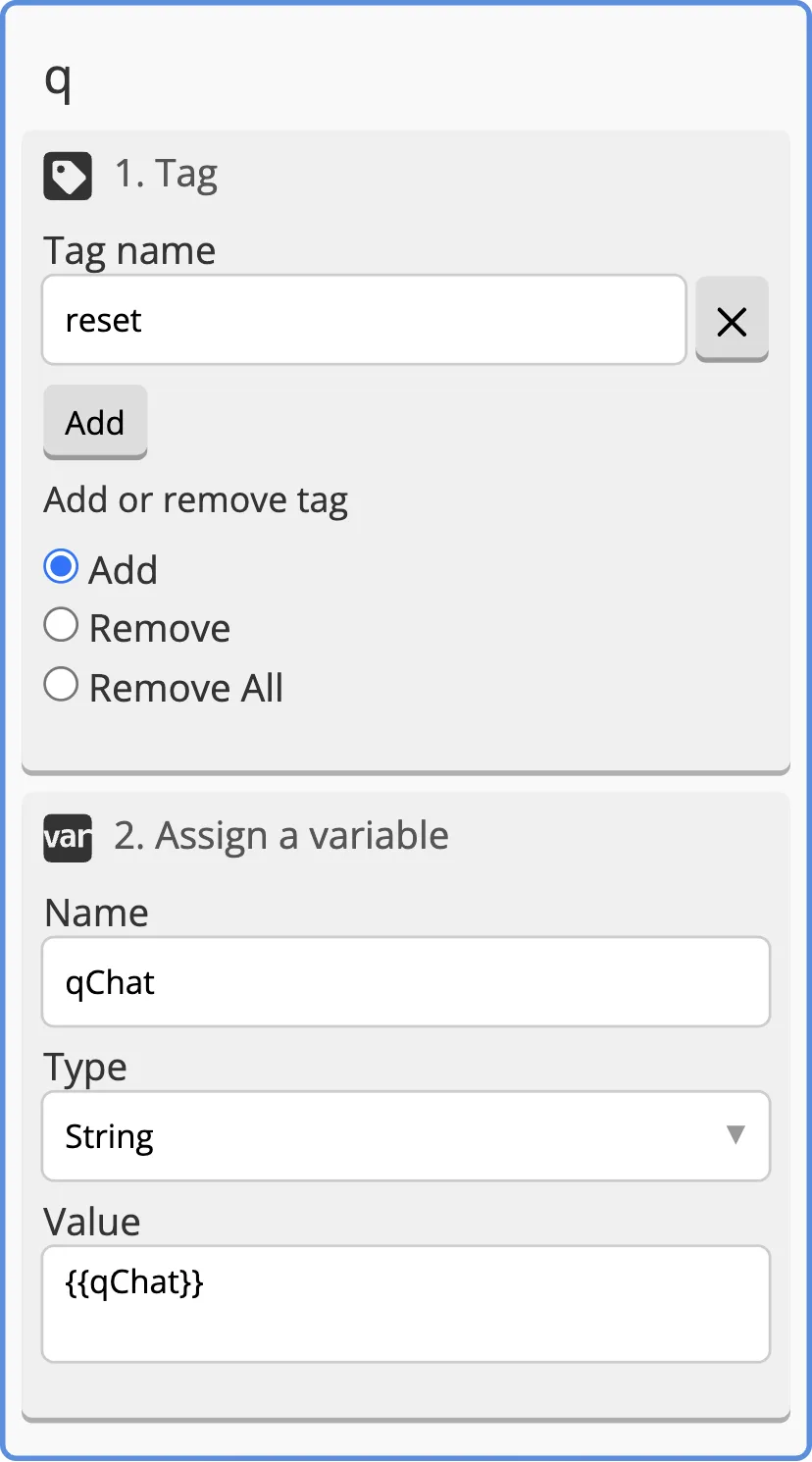

Screen "q" with a Tag "reset" and an Assign a variable component for qChat

3. Add the screen where NULL value is written to the variable. In the example the variable name is qChat, the screen name is Chat reset. So, we nullify the value of the variable that was previously assigned. We set the variable with Assign a variable component.

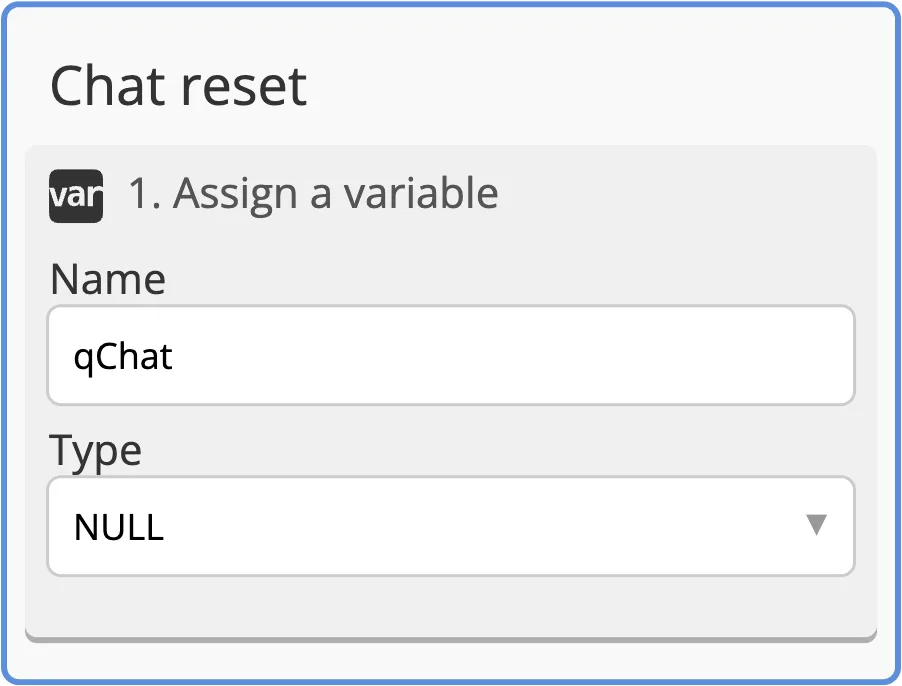

Screen "Chat reset" with an Assign a variable component setting qChat to NULL

4. Add Trigger event with Reset tag, that is to be triggered after a set period. In this case the period is 1 month or 30 days. This should trigger Reset chat screen.

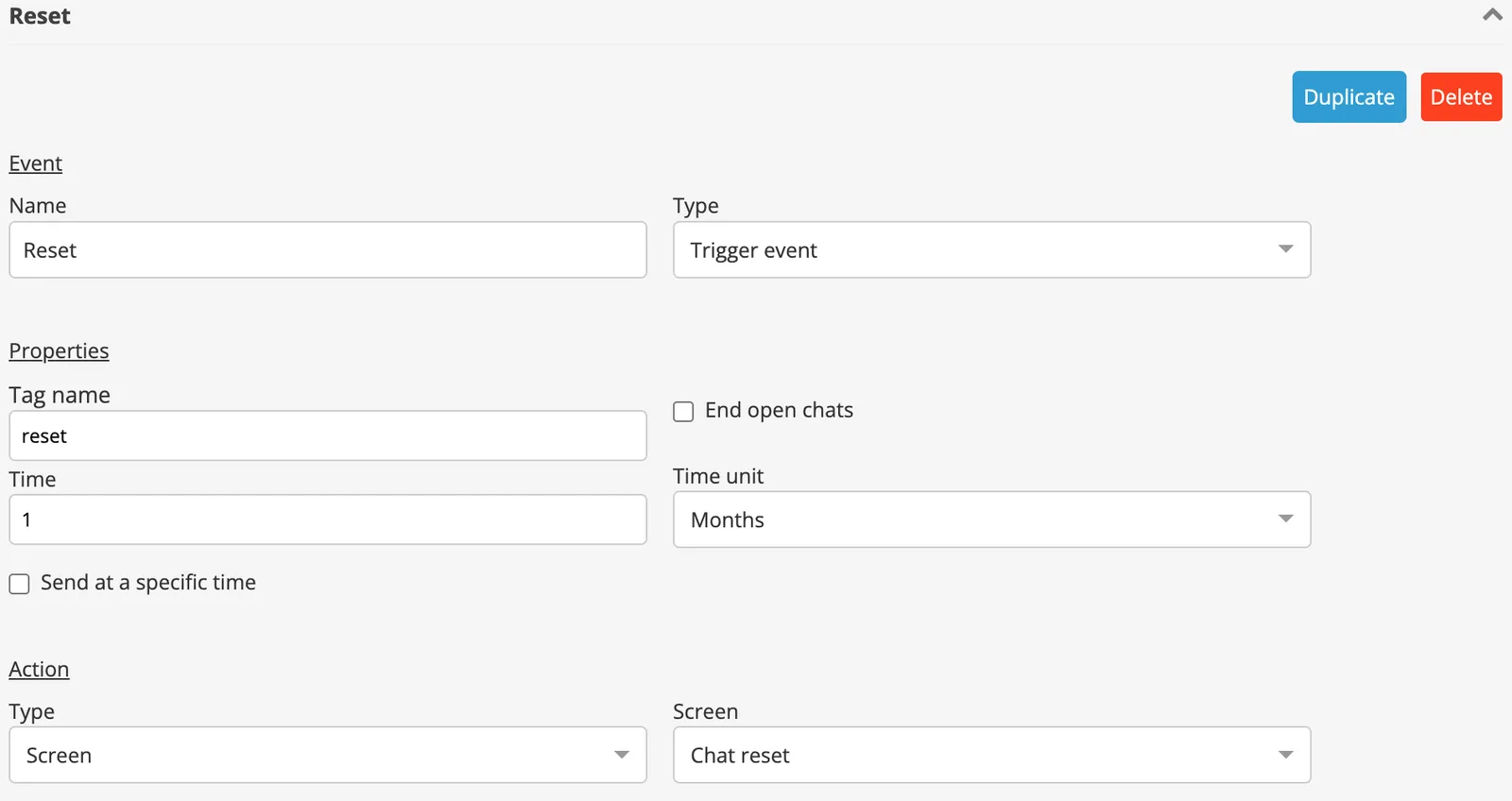

Trigger event "Reset" with tag "reset", a 1-month time and the "Chat reset" screen

5.When the user selects Сhat with the operator section, Start bundle screen is open. The screen contains a Fork, which takes the value from qChat variable. We write a condition to Fork goal: if qChat value matches the regular expression [^123], the user cannot access the chat, otherwise they can.

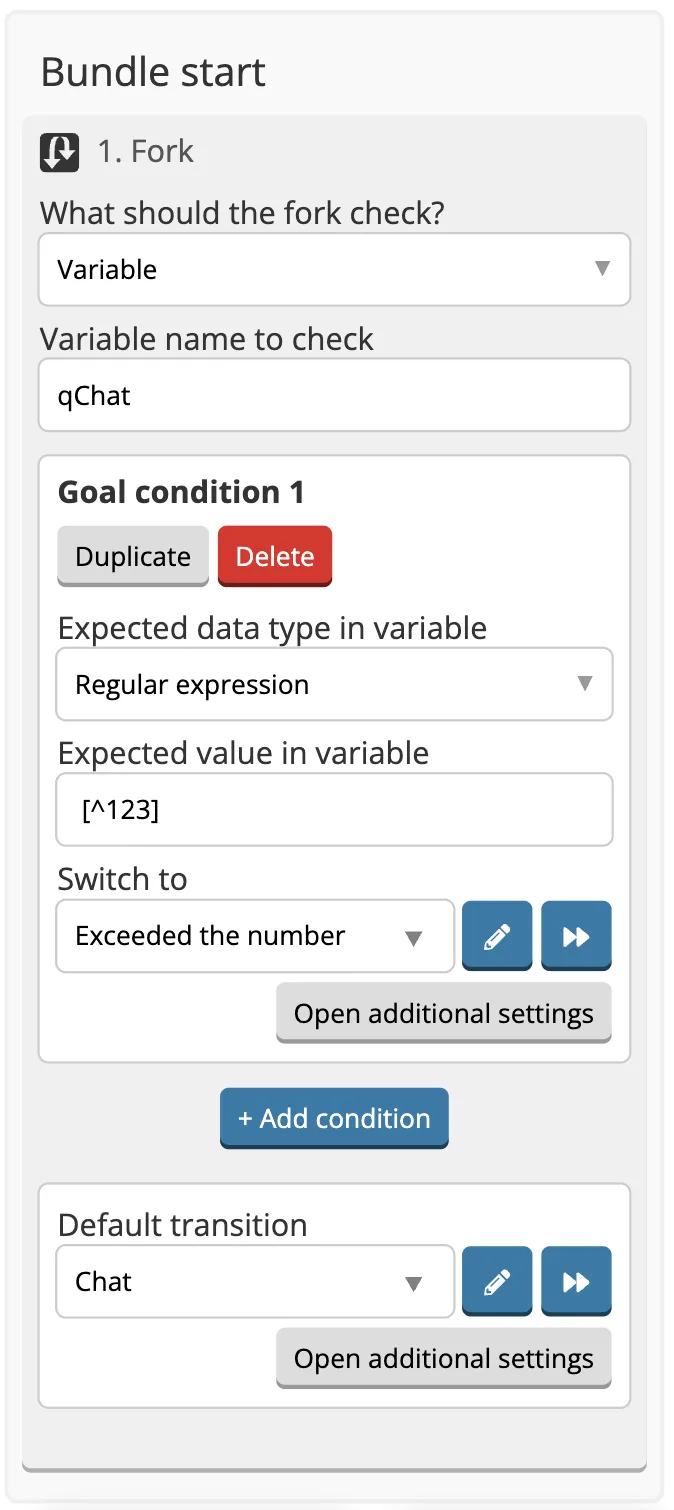

Bundle start screen with a Fork checking qChat against the regular expression "[^123]"

6. Create a screen to report that the chat is inaccessible, put the target of the regular expression to this screen.

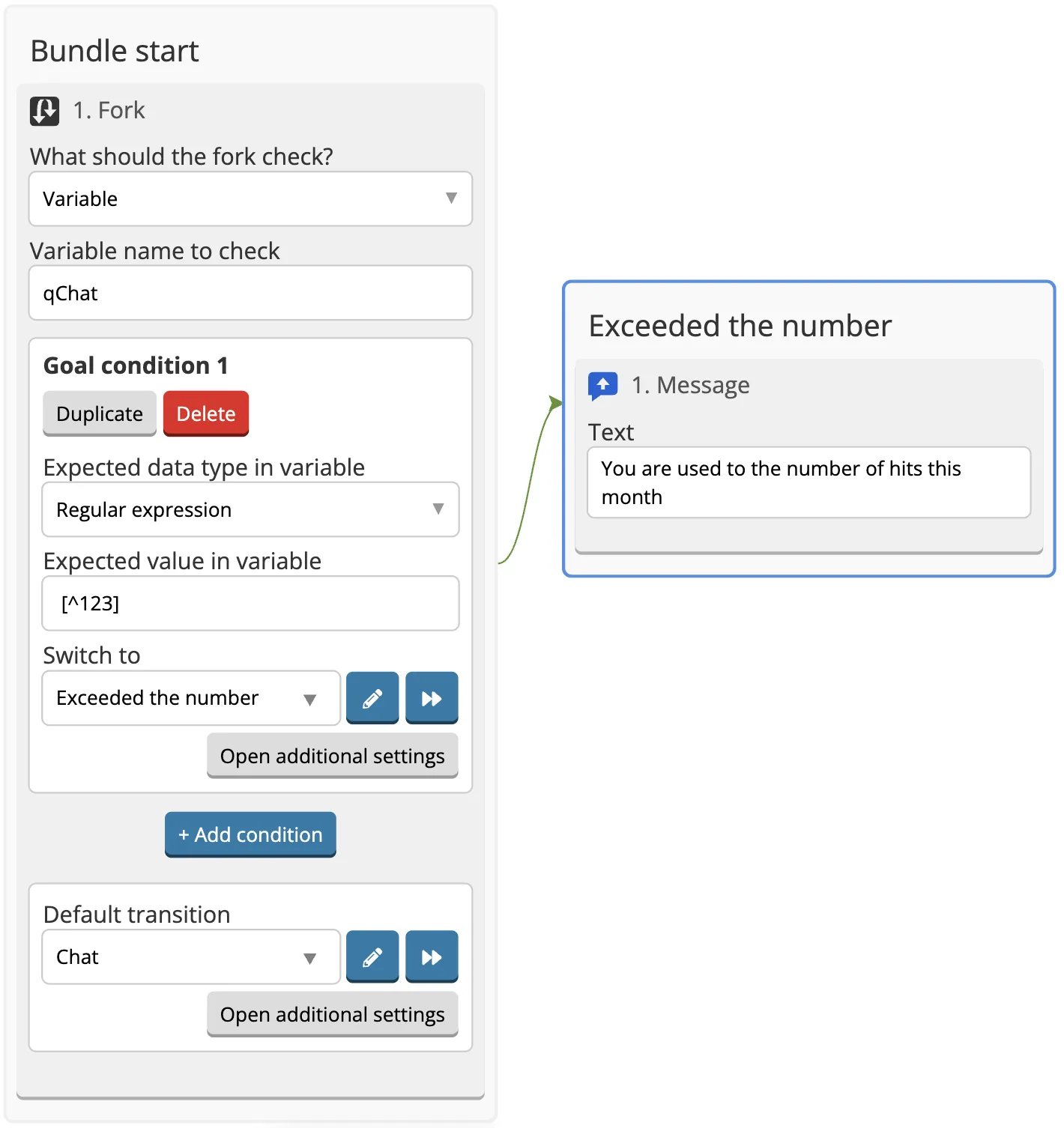

Fork sending to "Exceeded the number" screen with the message about this month's hits

7. The default target leads to the chat screen. Before the chat, we must write {{sum qChat 1}} value to qChat variable. In this way we will count how many times the user has entered the chat.

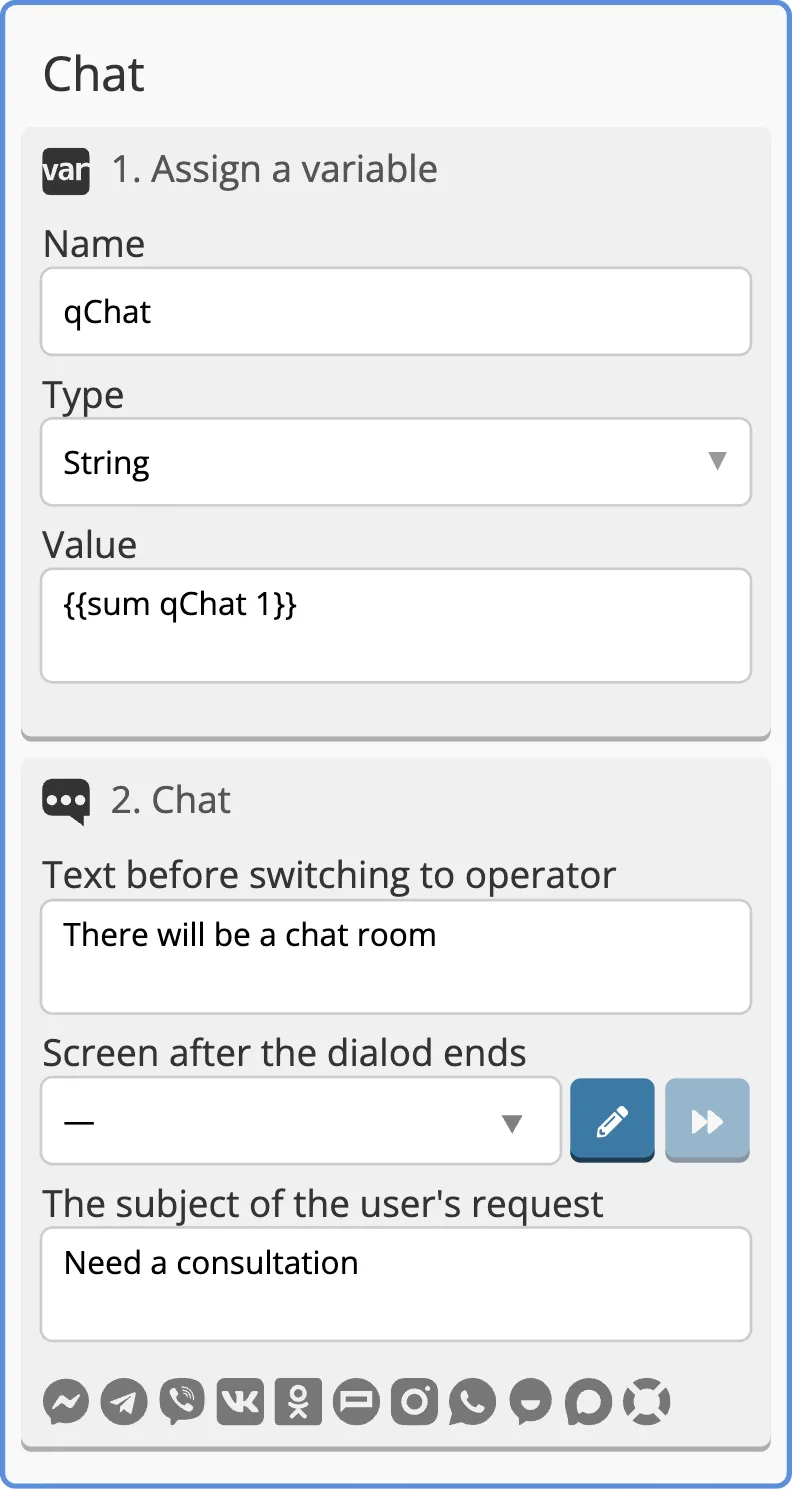

Chat screen with an Assign a variable step setting qChat to {{sum qChat 1}}

All together, the screens created may look like this:

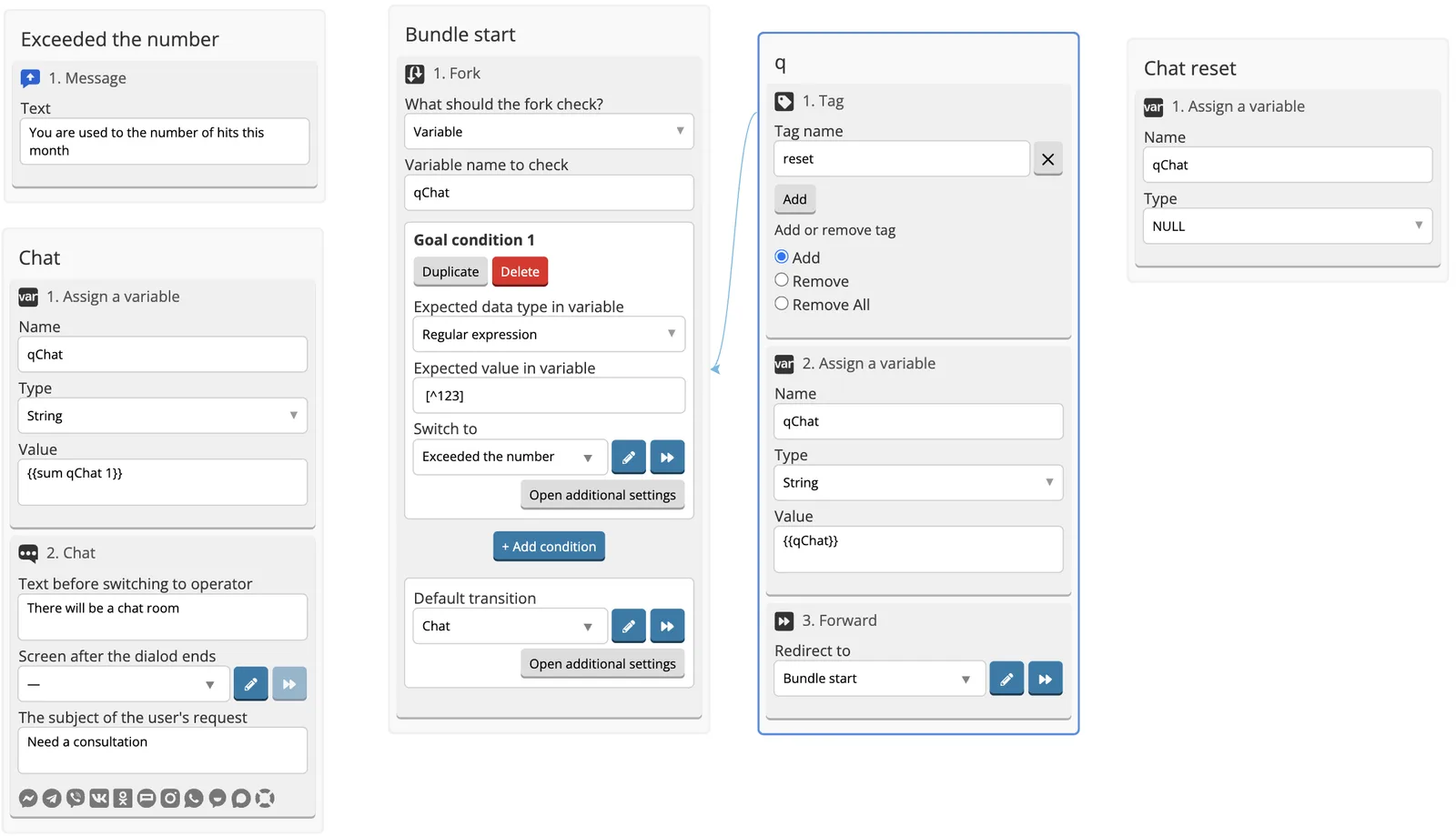

Overview of the connected screens: Exceeded the number, Chat, Bundle start, q, Chat reset
